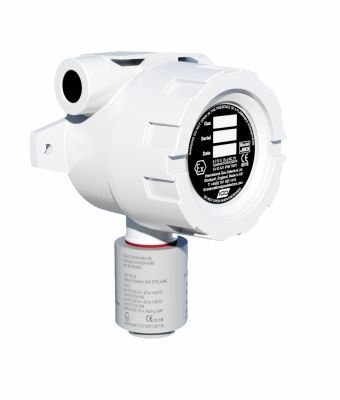

TOC-750X ATEX Addressable Gas Detector
TOC-750X Series gas detectors are both ATEX and IECEx approved for use in potentially flammable atmospheres. TOC-750X uses IGD’s Sentinel+™ addressable technology, specifically designed for gas detection, fast, secure digital communication. TOC-750X is a versatile addressable ATEX/IECEX gas detector, with sensor options for over 300 gases. Gas types include toxics, flammables, VOC’s and oxygen monitoring. Our TOC-750X incorporates our industry leading long-life sensor technology, reducing cost of ownership. Sentinel+™ addressable technology reduces installation time and costs utilising our unique to 2-Wire Addressable technology. Power and communication over the same cable pair with no required polarity speeds installation. TOC-750X ATEX gas detectors are the most versatile and advanced ATEX/IECEx sensor on the market today.
Pre-Calibrated, plug-and-play TOC-102 Series Sensors:
Long-Life Pellistor
- General Flammable Gases MK8 0-100% LEL
Infrared
- Carbon Dioxide (CO₂) 0-5,000ppm
- Carbon Dioxide (CO₂) 0-5% VOL
- General Flammable Gases 0-100%LEL
- Methane (CH₄) 0-100%VOL
- Sulphurhexafluoride (SF₆) 0-1,000ppm
Electrochemical
- Acetylene (C₂H₂) 0-200ppm
- Carbon Disulphide (CS₂) 0-100ppm
- Carbon Monoxide CO) 0-100ppm
- Ethylene (C₂H₄) 0-200ppm
- Ethylene Oxide (C₂H₄O) 0-10ppm
- Ethylene Oxide (C₂H₄O) 0-100ppm
- Formaldehyde (CH₂O) 0-5ppm
- Hydrogen (H₂) 0-1,000ppm
- Hydrogen (H₂) 0-2,000ppm
- Hydrogen (H₂) 0-40,000ppm
- Hydrogen Cyanide (HCN) 0-10ppm
- Hydrogen Sulphide (H₂S) 0-50ppm
- Hydrogen Sulphide (H₂S) 0-100ppm
- Hydrogen Sulphide(H₂S) 0-5,000ppm
- Nitrogen Dioxide (NO₂) 0-5ppm
- Nitric Oxide (NO) 0-5ppm
- Silane (SiH₄) 0-20ppm
- Sulphur Dioxide (SO₂) 0-5ppm
Photoionisation Detector (PID)
- VOCs 0-10ppm
- VOCs 0-100ppm
- VOCs 0-200ppm
- VOCs 0-1,000ppm
- VOCs 0-2,000ppm
- VOCs 0-5,000ppm
Ionic Ammonia
- Ammonia (NH₃) 0-100ppm
- Ammonia (NH₃) 0-500ppm
- Ammonia (NH₃) 0-1,000ppm
- Ammonia (NH₃) 0-5,000ppm
Long-Life Oxygen Gas Detectors
- Lead-Free Oxygen (O₂) 0-25% VOL
Refrigerant Gas Detectors
- Infrared Refrigerants – 0-2,000ppm
- R1 Group Refrigerants – 0-1,000ppm
- R2 Group Refrigerants – 1,000-10,000ppm
ATEX Gas Detector
TOC-750X Series ATEX/IECEx gas detectors are approved to EN 60079 series flameproof EXd standards. Easily serviced detectors are manufactured using 316 corrosion resistant stainless steel. Both non-intrusive display and non-display versions are available with housings either in high pressure copper free white powder coated aluminium alloy or 316 stainless steel. EXd Certifications include gas and dust approvals for ATEX and IECEx.
Versatile
TOC-750X is one of the most versatile detectors on the market. The system has sensor options for over 300 gases and vapours including: flammables, toxic’s, VOC’s and oxygen monitoring. Our sensor designs ensure we have the longest life sensors the market has to offer. Each sensor is equipped with on board I/O to ensure maximum flexibility when it comes to designing a gas detection system. In addition to this the 750X comes in two variants, with and without display options and non-intrusive calibration.
Explosion Proof
TOC-750X has been tested to be used in Zone 1 and 2 environments and zone 21 and 22 ATEX/IECEx dust environments. Approvals include both ATEX and International IECEx Standards. This allows our TOC-750X addressable gas detectors to be used in ATEX or IECEx zoned applications. Examples could include, petrochemical sites, onshore/offshore gas and oil drilling platforms, spray booths, coating and flour production and many more.
Weather Proof
TOC-750X Series gas detectors have been designed to be used in some of the harshest environments. The housing and sensor are rated to IP65. This allows the sensor to be placed in outside environments, extreme temperatures, and places subject to wash-down regimes such as breweries.
Sentinel+ Addressable communication
Using our Sentinel+ ™ 2-Wire protocol, the 750 series gas detectors combine power and communication over a single 2-Core cable with no polarity requirement. By doing this installation times and costs are drastically reduced. Cabling costs alone can be reduced by as much as 70% compared to older analogue systems. There are fewer terminations to make, less points of unreliability, faster to deploy. Sentinel+™ based systems improve reliability by continuously monitoring data between connected detectors and the system controller. Thus, ensuring maximum system integrity and availability. With only two wires for power and communication existing systems can be easily upgraded, using their original cabling, with the option to easily add more detectors and devices as required.
- IGD Sentinel +™ Addressable Technology
- IP 65 weatherproof
- ATEX/IECEx rated for Zone 1 and 2 Gases & Dusts
- Versatile sensor design for over 300 gases.
- Display and non-display options
- Options for non-intrusive calibration
- Service via webpage apps.
- Typically, 70% installation cost saving via the 2-core cable
- Long-life sensor technology
- Plug replaceable sensors
Typical applications include:
- Breweries & food processing
- Petrochemical
- Onshore and Offshore rigs
- Chemical processing
- Gas pumping stations
- Gas bottle filling
- Coating processes
- Process industry
- Construction – Aluminium Alloy or Stainless Steel option
Detector: 316 Stainless Steel - ATEX/IECEx rated for Zone 1 and 2 Gases & Zone 21 and 22 Dust
- Communication – IGD Sentinel+ protocol = Addressable
- Temperature: -20 Degrees C to 55 Degrees C
- Humidity: 0-95% RH Non-Condensing
- Sealing IP65
- Mounting: Wall Mount
- Weight: 1.55kg
- Dimensions: D 145mm x W 145.0 x H 191.7mm
- Requires: TOC-750/650 controller or 635 controller to operate.
- See downloads datasheet for further details
Please see below accessories (sold seperately)
- Splashguard
- EMS Sampler
- Collector cones
- Collector gas hoods
- Gas test applicators
- Remote sensor options
- Bump test kits
- Range of duct adaptors dependent on application
- Cable Glands
- Remote reset buttons
Detector Housing
- TOC-750X/ JB3 ATEX Certificate
- TOC-750X/ JB3 UK ATEX Certificate
- TOC-750X/ JB3 IECEx Certificate
- TOC-750X/ JB3 PESO Certificate
Sensor Housing
