Fixed Gas Detection System – T625-230

Sending
User Review
5 (1 vote)

£271.07£319.07 Exc VAT

Clear

The T625-230, fixed gas detection system is a modern addressable gas detection system. It features a 1 click automatic alarm setup, allowing you to install and setup the system with no gas detection knowledge needed. Once the system has finished setting up the alarm levels for the connected sensors, all you have to do is bump test the detectors to verify alarms. Simple to install no nonsense gas detection system.

**Please note this is just the control panel, sensors sold separately***

Product Description

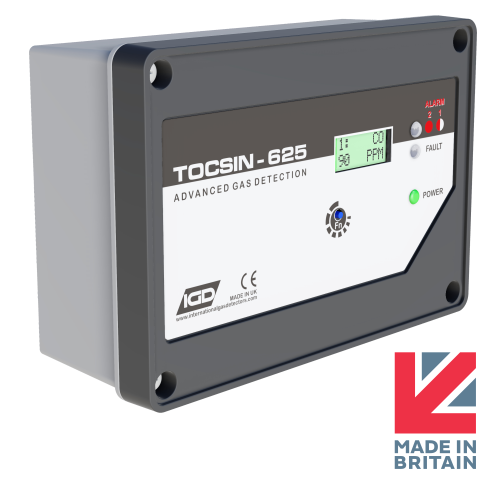

Fixed Gas Detection System Control Panel – T625-230

The T625-230 fixed gas detection system control panel, is a multi-channel addressable (1-8 devices), detector controller. The controller features IGD’s ground breaking: 1 click automatic alarm setup function. This means once all the sensors are connected to the controller, you just have to press one button and the system automatically sets all alarm levels in accordance to EH 40 and DESEAR regulations. Then all you would have to do is bump test the detectors.

An easy to install, small format package, that you can install yourself with no gas detection engineer required. Once the system has finished setting the alarm levels, all you have to do is bump test the sensors to verify alarms.

Our fixed gas detection system control panel, has a colour changing display, with built in sounder and will display all current gas readings, for clear unambiguous messages:

  • Green for all okay
  • Orange for fault (with a clear message on what the fault is)
  • Red for alarm with an internal 80dB sounder.

This variant of our 1 click automatic alarm setup controller, is a larger format than our T625-MICRO series. However unlike the MICRO series the T625-230 power supply unit is internal to the controller.

The T625 fixed gas detection system control panel can be used with any of the T625 addressable sensor ranges.



Gas Sensor Options Below (required for a full system):

Summary
product image
1star1star1star1star1star
0 based on 1 votes
Brand Name
Tocsin
Product Name
Fixed Gas Detection System Control Panel - T625-230
Price
GBP 271.07
Product Availability
Available in Stock

Product Specification

  • 1-8 sensors
  • 1 Click automatic alarm setup function
  • 110/230V AC 50/60Hz
  • Pre-made cable versions available
  • Power supply unit is internal to the controller
  • Live Gas readings
  • colour change display with clear messages
  • internal sounder 80dB
  • RS485 ModBus Port
  • 1-8 Devices
  • 0-95% RH non-Condensing
  • IP54
  • 2 off SPCO Relays 4A Non-inductive
  • 3 off 4-20mA linear outputs

Downloads
